Introduction

This case study shows the development of a high through-put microfluidic platform utilising an artificial lipid membrane constructed such to mimick a bacterial cell wall. The platform uses the electrochemical method of cyclic voltmmetry to measure and characterise the membrane. The cyclic voltammograph produces a fingerprint of the membrane. We systemmatically presented a library of compounds to be screened and evaluated to the membrane so that their kinetic interaction can be observed via the voltammogram.

Key Points

  • Electrochemical monitoring and characterisation of the lipid membrane.

  • Electrochemical measurement of the kinetic response of the membrane to a novel compound.

  • Development of electrodes to support lipid membranes.

  • Automated method of creating and replenishing lipid membranes on electrodes.

  • Automated functionalisation of lipid membranes

  • Automated loading, measurement and cleaning of novel compounds.

  • Software UI to allow control of the system and exporting and CV profiles.

Completed System

Technologies

electrochemical data analysis microfluidics electronics python

Customer

External Links & Publications

Artificial Lipid Membrane

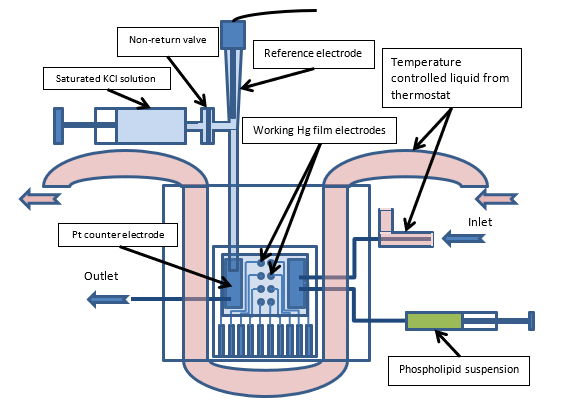

A micro-electrode (or an array of micro-electrodes) created using lithographic techniques were positioned in a temperature controlled microfluidic flow cell. The electrode arrays comprise working, counter and reference. Using a variety of phosphorlipid membrane suspensions and under the correct flow and electrcohemical conditions a single layer and double layer phospholidpid membrane was formed onto the eletrode. Using different solutions and different electrochemical conditions membranes could be cleaned or removed allowing a fully automated system.

style switcher

Membrane Kinetics

Many antimicrobial inhibitors function by permeabilising the cytoplasmic membrane. Bacterial membranes have high contents of negatively charged lipids like phosphatidylglycerol (PG) or diphosphatidylglycerol (DPG or cardiolipin), which are the most abundant anionic phospholipids of cytoplasmic bacterial membranes. These phospholipids are particularly prominent in a number of gram-positive bacteria.

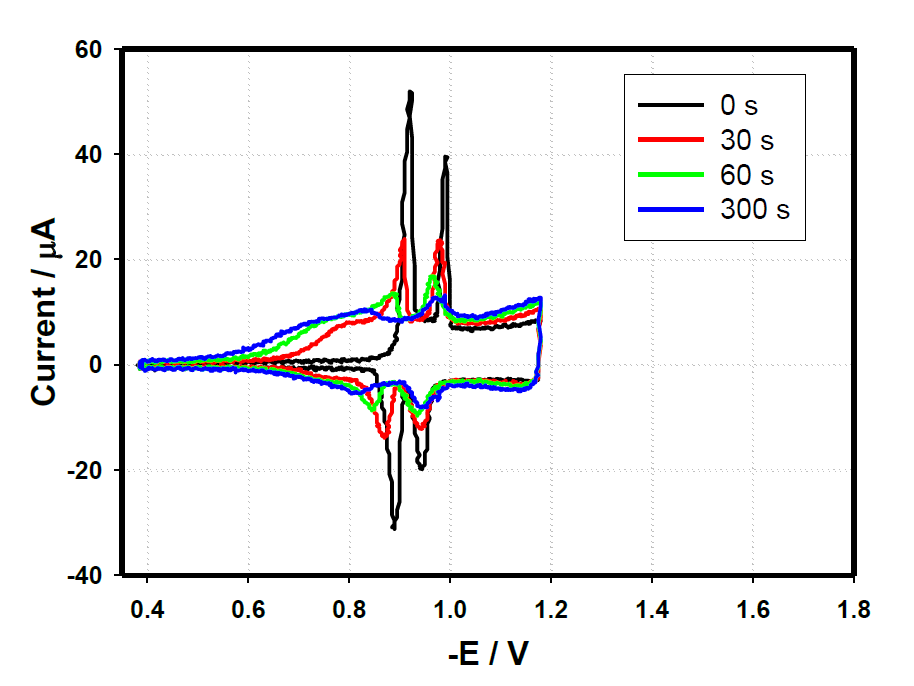

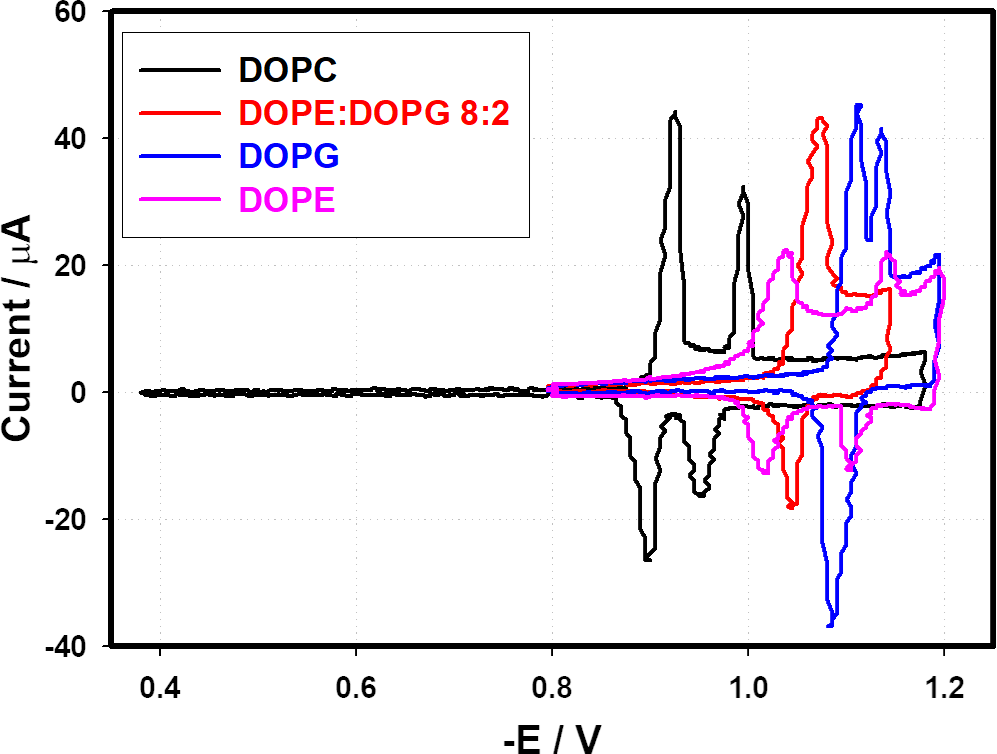

Using electrochemical measurements a characteristic "fingerprint" of membrane could be observed. When compounds were presented we could monitor the kinetic interaction of the compound with the membrane and therefore characterize the compounds effectiveness and its action.

Software

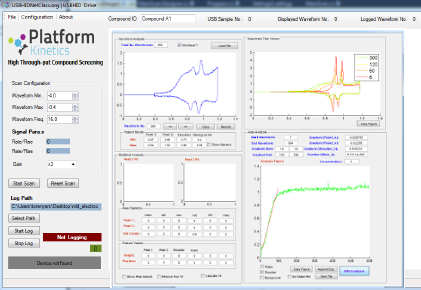

Custom desktop software was developed which allowed the system to be automated for producing the electrodes, loading the compounds and performing the electrochemical measurements. Once a compound had been screened then data extraction and analysis was automatically performed on the collected data and each compound ranked and the action of the compound reported. The user could then choose to perform concentration studies on the most promising compounds.
